Traction Machines   >   GEM   >   Products

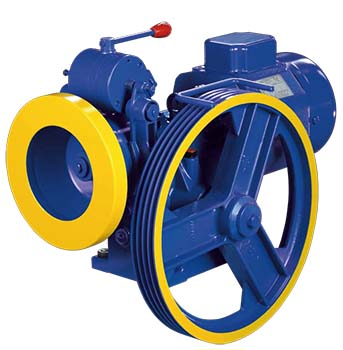

Name: HW134
Specs:8HP VVVF, Rope Guard, Ratio 1/42, 4 poles,
550x4x10 sheave, speed 1m/s,
Loading Capacity 480KG, 50HZ, Static load 2400kg,
240st/hour, 190KG Weight, With thermistores – right hand –
Roping 1:1 – balance 50%, Brake 200V

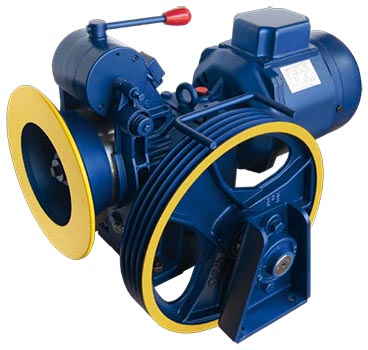

Name: HW134
Specs:8HP AC-2, RopeGuard, Ratio 1/42, 4/16 poles,
550x4x10 sheave,speed 1m/s,
Loading Capacity 480KG, 50HZ, Static load 2400kg,
180st/hour, 230KG Weight, With thermistores – right hand –
roping 1:1 – balance 50%, Brake 200V

Name: HW134L
Specs:10HP VVVF with encoder, With Side Pedestal, Rope Guard,
Ratio 1/37, 4 poles, 480x5x10 sheave, speed 1m/s,
Loading Capacity 630KG, 50HZ, Static load 2700kg,
240st/hour, 220KG Weight, With thermistores – right
hand – roping 1:1 – balance 50%, Brake 200V

Name: HW140CL
Specs:12HP VVVF with encoder, With Side Pedestal, Rope Guard,
Ratio 1/44, 4 poles, 480x6x10 sheave, speed
0.85m/s, Loading Capacity 900KG, 50HZ, Static load
3800kg, 240st/hour, 2750KG Weight, With
thermistores and thermo-contacts - right hand
roping 1:1 - balance 50%, Brake 200V.
